TP: Environmental Risk

Work Sheet 2

Task 2.1: Explore the `coral_cover` data set

Data is already loaded:

# Don't forget to load the tidyverse package:
library(tidyverse)

# Read the coral_cover data:
dat_coral_cover <- read.csv("https://raw.githubusercontent.com/andieich/practicals_envrisk/refs/heads/main/data/coral_cover.csv")

Table 1: First five rows of coral_cover data set

year	date	site	transect	percent
2005	2005-02-16	Haapiti	1	32
2005	2005-02-16	Haapiti	2	18
2005	2005-02-16	Haapiti	3	36
2005	2005-02-16	Taotaha	1	32
2005	2005-02-16	Taotaha	2	42

You can use R functions to answer the questions or open the data frame in Excel:

Which years are covered?

Are there any gaps?

1dat_coral_cover %>%
2  select(______) %>%
3  distinct() %>%
4  summarise(______ = diff(______))     %>%
5  filter(______ != ______)

1: Take the dat_coral_cover data set, and then,
2: only select the year column, then,
3: remove any duplicated rows with disticnt(), then,
4: calculate difference between years with diff(columnname), then,
5: show only rows in which the difference is not (!=) 1

How many sites?

1dat_coral_cover %>%
2  select(______) %>%
3  distinct() %>%
4  summarise(______ = ______)

1: Take the dat_coral_cover data set, and then,
2: only select the site column, then,
3: remove any duplicated rows, then,
4: show only the number of rows with n()

Same number of transects per site and year?

1dat_coral_cover %>%
2  group_by(______, ______) %>%
3  summarise(______ = ______ %>%
4  filter(______ != ______)

1: Take the dat_coral_cover data set, and then,
2: group by site and year, then,
3: calculate the number or rows per group with n(), then
4: show only rows in the number of rows is not (!=) 3

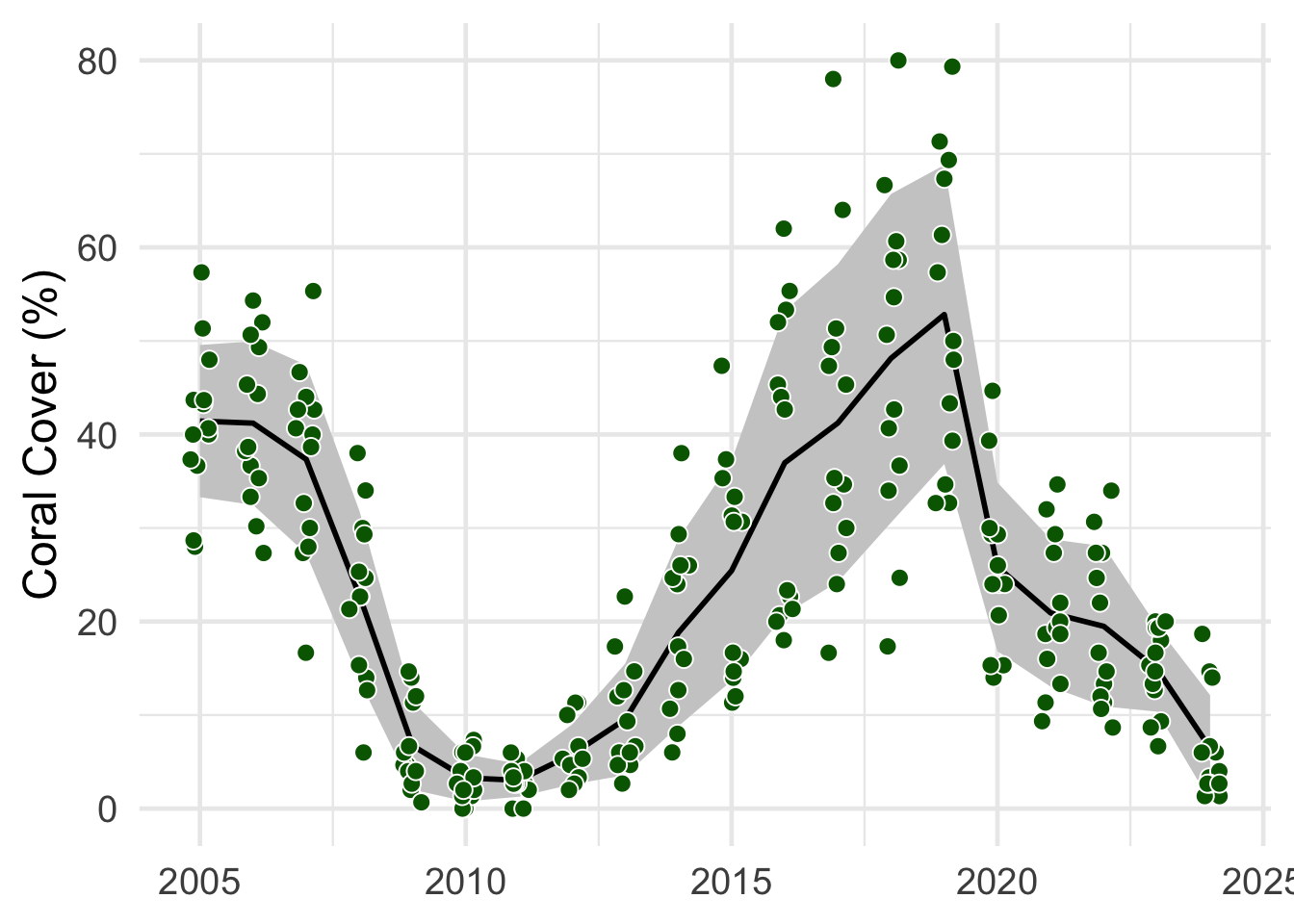

Task 2.2: Make a similar plot

The points are the mean percent values per site
The line is the mean of these mean values
The shaded area in this mean ± the standard deviation sd()

# Calculate the mean coral cover per site and year
1dat_coral_cover_sitesS <- dat_coral_cover %>%
2  group_by(______, ______) %>%
3  summarise(percent = mean(______))

# For each year, calculate the mean and sd of the mean cover per site
4dat_coral_coverS <- dat_coral_cover_sitesS %>%
5  group_by(______) %>%
6  summarise(mean_percent = mean(______),
7            sd = sd(______))

# Plot the data
8  ggplot(mapping = aes(x = ______))+
9  geom_ribbon(data = ______,
10              aes(ymin = ______, ymax = ______), fill = "grey80")+
11  geom_line(data = ______,
12            aes(y = ______)) +
13  geom_point(data = ______,
14             aes(y = ______),
15             position = position_jitter(width = .2, seed = 1))  +
16  labs(x = "______", y = "______") +
17  theme_minimal()

1: Make a new summary data frame called dat_coral_cover_sitesS. Take the dat_coral_cover data frame and
2: group it by year and site, then,
3: calculate the mean percent value.
4: Then, create another summary data frame called dat_coral_coverS. Take the just created dat_coral_cover_sitesS summary data frame and
5: group it by year, then,
6: calculate the mean
7: and standard deviation (sd()). Now you are ready to plot the data.
8: Make a new ggplot, store in aes() the axes that will be used in all layers. year should be plotted on the x axes, the variable names for the y axis differs for the layers (percent and mean_percent).
9: Add a geom_ribbon(). Use dat_coral_coverS as input data
10: and mean_percent - sd for ymin and mean_percent + sd for ymax. You can define the fill color with fill.
11: Add a geom_line(). Use dat_coral_coverS as input data
12: and mean_percent as y axis. Then,
13: add a geom_point(). This time, use dat_coral_cover_sitesS as input data
14: and percent as y axis.
15: You can randomly wiggle the position of the points to show the variability with position_jitter().
16: Define the axis titles
17: and select a theme.

Task 2.3: Explore variability between sites

Filter the dat_coral_cover for year >= 2019 and year <= 2023
Make a summary data frame with the mean per site and year.
Find way to plot the variability between sites. For example, you could plot separate lines for each site or make sub-panels with facet_wrap().

# Filter dat_coral_cover for `year >= 2019` and `year <= 2023`
1dat_coral_cover_2019 <- ______ %>%
2  filter(______ >= ______, ______ <= ______)


# For each site and year, calculate the mean cover
3dat_coral_cover_2019_S <- ______ %>%
4  group_by(______, ______) %>%
5  summarise(mean_percent = ______(______))

# Plot lines on top of each other
6ggplot(mapping = aes(x = ______,
7                       col = ______))+

  # add a line
8  geom_line(data = ______,
9            aes(y = ______))+

  # add the raw data
10  geom_point(data = ______,
11             aes(y = ______),
12             position = position_jitter(width = .2))+
13  labs(x = "______", y = "______")+
14  theme_minimal()+
  theme(legend.position = "None")

1: Make a new data frame for the filtered data called dat_coral_cover_2019. Take the dat_coral_cover data frame and
2: filter for year >= 2019 and year <= 2023.
3: Make a new summary data frame for the filtered data called dat_coral_cover_2019_S. Take the filtered dat_coral_cover_2019 data,
4: group by site and year,
5: and calculate the mean cover.
6: Then, plot the data. Store in aes() the axes that will be used in all layers. year should be plotted on the x axes.
7: site should be used to color the points and lines. If used like that, separate lines will be drawn for each site.
8: Add a geom_line() for the dat_coral_cover_2019_S data to plot
9: the mean_percent data.
10: Add a geom_point() for the dat_coral_cover_2019 data
11: to plot the percent data
12: You can randomly wiggle the position of the points to show the variability with position_jitter().
13: Define the axis titles
14: and select a theme.

Task 2.4: Combine data

Combine dat_change_coral_cover and dat_max_dhw_2019_sites based on the site column

Use the left_join() function:

1dat_new <- left_join(x = data_1,
2                     y = data_2,
3                     by = "column_name")

1: data_1 will be used as “template”. To all rows data will be added. If not in data_2, NA values will be added
2: data_2 will be used to add all columns to data_1,
3: based on common values in the "column_name" (Note the "")

1dat_change_coral_cover <- left_join(______,
2                                    ______,
3                                    by = "______")

1: Replace dat_change_coral_cover with the combined data of dat_change_coral_cover and dat_max_dhw_2019_sites. Use dat_change_coral_cover as a template
2: to add data from dat_max_dhw_2019_sites
3: based on common values in the "sites" column

Task 2.5: Regression

Analyse the impact of max_dhw on rel_change in the dat_change_coral_cover data set:

Is this effect significant?
What is the expected change in coral cover per unit DHW?

# Run a regression
1m_change_coral_cover <- lm(______ ~ ______,
2                           data = ______)

# Show results
3summary(______)

1: Run a regression model and call it m_change_coral_cover. Use max_dhw to explain rel_change.
2: Both columns are in the dat_change_coral_cover data frame.
3: Show the results of the regression called m_change_coral_cover

Task 2.6: Regression visualisation

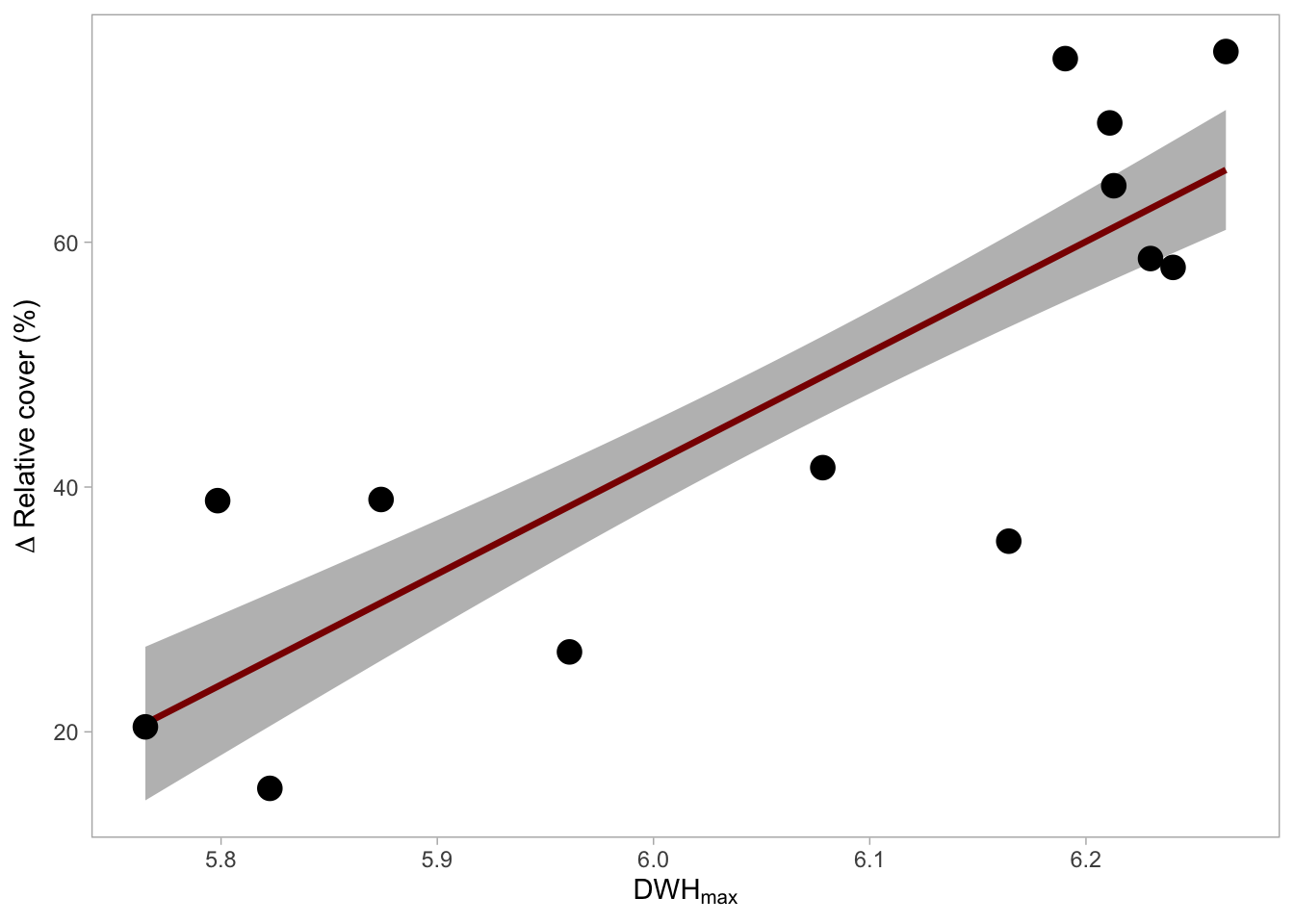

Plot the coral cover data and model in a similar way

# Make a new data frame with sequence of x values
1ndat_coralcover_dhw <-  data.frame(______ = seq(min(______),
2                                                 max(______,
3                                                 length = ______))

# Predict data
4pred_coralcover_dhw  <- predict(______,
5                                newdata = ______,
6                                se.fit = T) %>%
7                        bind_cols(______)

# Plot
8ggplot(mapping = aes(x = ______))+
  # Plot SE
9  geom_ribbon(data = ______,
              aes(ymin = ______,
                  ymax = ______),
              fill = "grey")+
  #Plot model
10  geom_line(data = ______,
            aes(y = ______),
            col = "darkred", linewidth = 1.2)+
  # Plot raw data
11  geom_point(data = ______,
             aes(y = ______), size = 4)

1: Make a new data frame and call it ndat_coralcover_dhw. Add a column called max_dhw containing a sequence from the minimum max_dhw value in dat_change_coral_cover
2: to the maximum max_dhw value.
3: The sequence should have 100 entries
4: Based on the model m_change_coral_cover, predict values and store them in a new data frame called pred_coralcover_dhw.
5: The predicted values should be done for x values in ndat_coralcover_dhw.
6: Also predict the standard error.
7: predict() only returns the predicted values. For plotting, add again the x values stored in ndat_coralcover_dhw. Now you are set up for the plot.
8: Store in aes() the axes that will be used in all layers. max_dhw should be plotted on the x axes.
9: Add a geom_ribbon() for the predicted data ± the standard error (fit - se.fit for yminand fit + se.fit for ymax). These columns are in pred_coralcover_dhw.
10: Now, add the regression line with geom_line(). The column fit in pred_coralcover_dhw should be used as y axis.
11: Then, add the raw data that is stored in dat_change_coral_cover. Use rel_change as y axis.
